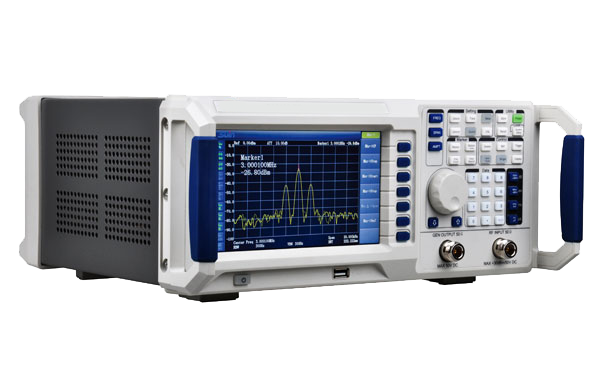

Spectrum Analyzer
OSA9000 Series
-
-
- Frequency range: 9 kHz to 1.5 GHz / 3 GHz; resolution: 1 Hz.
- Amplitude resolution: ±1.0 dB; resolution BW: 10 Hz to 1 MHz (step 1-3-10).
- Phase noise: -80 dBc/Hz.
- Quasi-peak detector, channel power measurement, adjacent channel power measurement, occupied BW measurement.
- USB host, USB device, LAN, RS-232.
-
